Double Girder Cranes – Heavy-Duty Lifting with Maximum Precision
SG Fabrication’s Double Girder Cranes are designed for intensive industrial use, built with precision and powered by globally certified components. These cranes offer greater lifting heights, wider spans, and superior load handling—ideal for heavy-duty applications where safety and reliability are critical.
🧩 What is a Double Girder Crane?

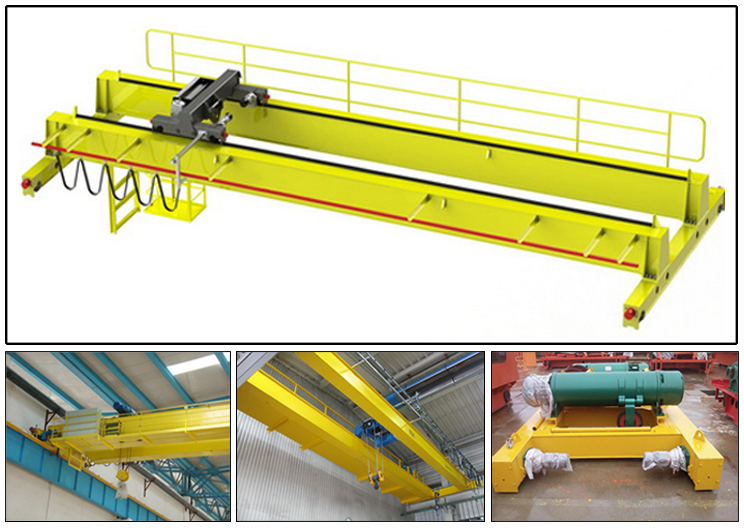

A Double Girder Crane consists of two parallel bridge girders supported by end trucks, with the hoist running on rails mounted atop the girders. This configuration enables higher hook height, increased capacity, and greater span—making it the go-to solution for demanding material handling operations in large-scale industrial facilities.
SG Fabrication’s double girder overhead cranes are built according to FEM and ISO standards, combining robust steel fabrication, advanced electronic controls, and operator-friendly features for seamless, safe lifting operations.
Key Features
High Lifting Capacity – Up to 100 Tons
Optimized for Heavy-Duty and Continuous Operations
Maximum Hook Height – Ideal for Taller Facilities
Custom Spans and Trolley Designs Available
Precise Control with Variable Frequency Drives (VFDs)
Integrated Walkways and Maintenance Access (optional)
Multiple Control Options: Cabin, Pendant, Remote
Ideal Applications
Double girder cranes are essential in:
Steel Mills & Foundries
Heavy Fabrication Yards
Shipbuilding & Marine Yards
Cement & Chemical Plants
Paper & Pulp Industries
Power Plants & Turbine Maintenance
Large Warehouses & Assembly Lines
🛠️ Technical Specifications
| Parameter | Specification |
|---|---|
| Load Capacity | Up to 100 Tons |
| Span Range | Up to 40 meters (customizable) |
| Lifting Height | As per site requirement |
| Crane Type | Top Running / Underhung |
| Hoist Type | Electric Wire Rope Hoist or Winch Trolley |
| Lifting Speed | VFD-controlled (custom options) |
| Control Mode | Cabin / Radio Remote / Pendant |
| Duty Class | ISO M5 – M8 (FEM 2m – 4m) |
| Safety Features | Overload Protection, Limit Switches, Anti-Collision Systems |
